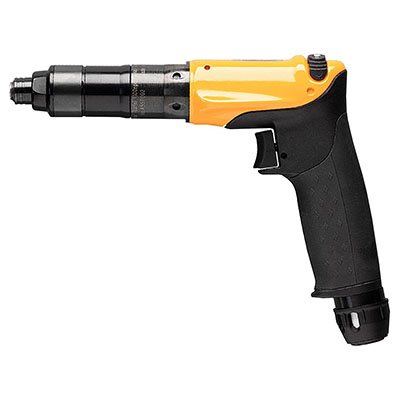

ATLAS COPCO 8431 0269 11 - LUM22 HR12-370-P : PNEUMATIC PISTOL GRIP SHUT-OFF SCREWDRIVER WITH TRIGGER START AND PUSH START

Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up. The LUM Pistol Grip Screwdriver combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. Suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. The LUM pistol grip range comes in several different configurations.

Features

• Superior ergonomics
• Spring-operated shut-off clutch
• Reversible
• Quick change chuck
• RE reporting models

Benefits

• Great durability and productivity
• Increased performance
• Compact size for use in limited spaces

Technical Specifications

Design & Functions

• Model type: Pistol
• Shut-off: Shut-off
• Start trigger: Trigger and push
• SCIP: d1196d17-abfb-41fd-8563-7e39f8d98348
• Output type: Hexagon, Female

Torque

• Torque range soft joint min: 31 in-lb
• Torque range soft joint max: 110.6 in-lb
• Torque range min: 22.5 ft-lb
• Torque range max: 82.8 ft-lb

Speed

• Free speed: 370 r/min

Noise & vibrations

• Sound uncertainty: 3 dB(A)
• Vibration value: <2.5 m/s^²
• Vibration standard: ISO28927-2
• Sound pressure: 78 dB(A)
• Sound standard: ISO15744

Certifications, standards & directives

• EU Standard: ISO 11148-6
• EAC certified: Yes
• UK Standard: ISO 11148-6
• UK Regulations: S.I. 2008/1597
• EU Directives: 2006/42/EC

Dimension & weight

• Weight: 2.2 lb
• CS distance: 21 mm
• Output size: 1/4"
• Recommended hose size: 10 mm
• Length: 210 mm
• Air inlet thread: 1/4 in

Air information

• Max working pressure: 100 psi
• Air consumption at free speed: 16 cfm
